Outdoor Infrared Heater Installation in Surprise & the West Valley
Arizona winters average 45°F at night from December through February — cold enough that an unheated patio goes unused for months. Electric infrared heaters extend your outdoor season by heating people and objects directly rather than wasting energy on open air. Mason Electric installs hardwired outdoor infrared heaters on patios, pergolas, and outdoor kitchens throughout Surprise, Goodyear, and Peoria.

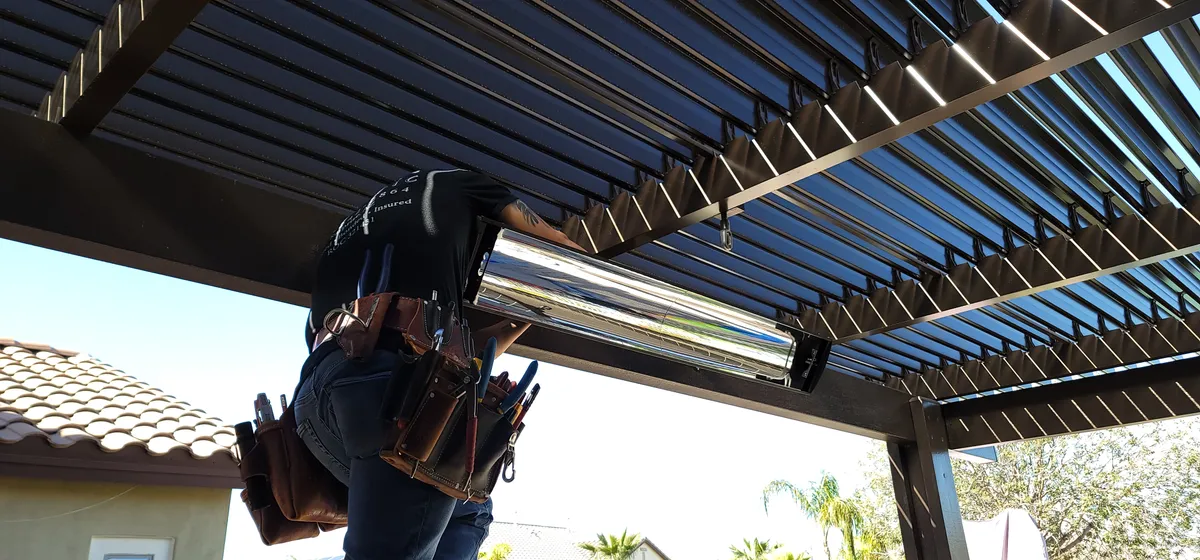

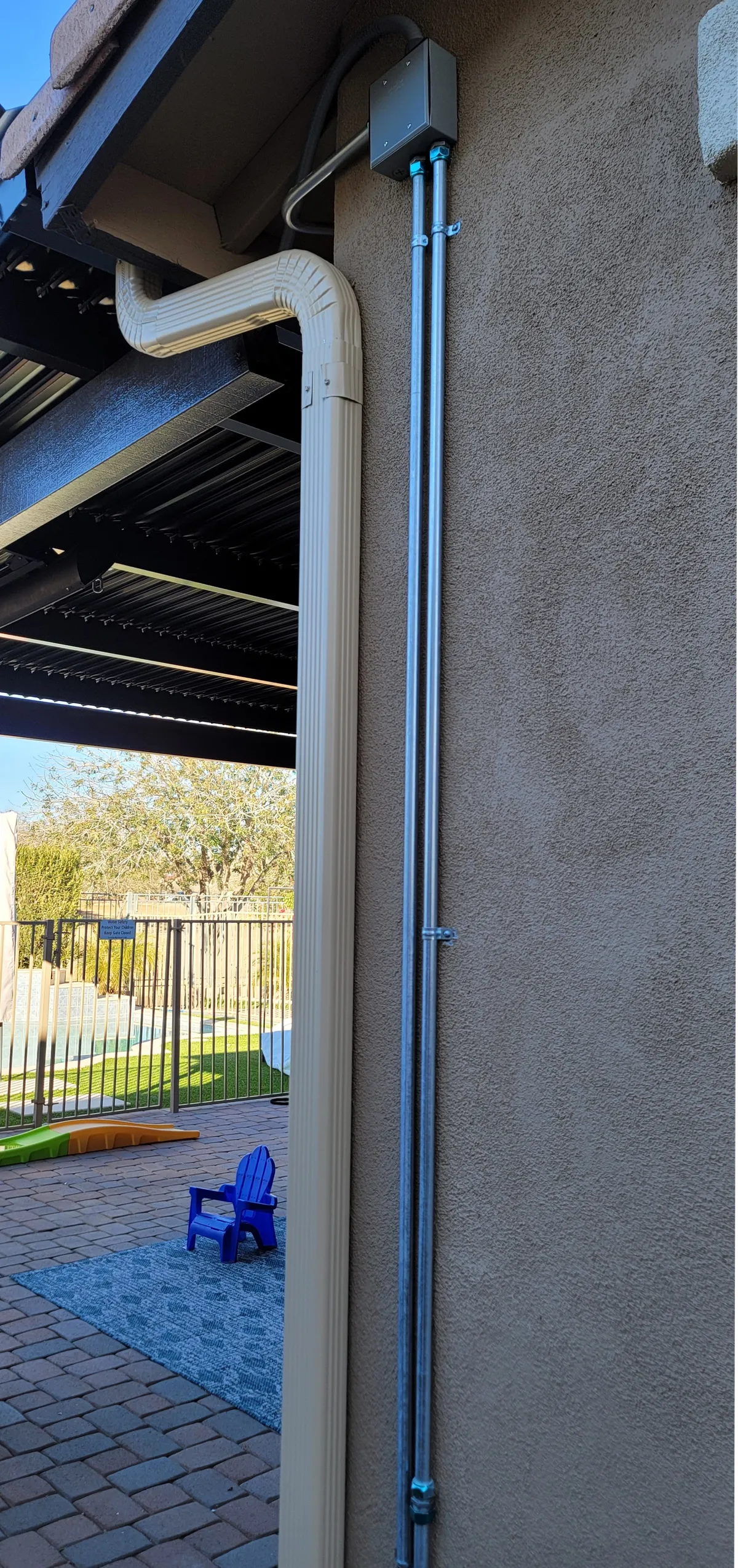

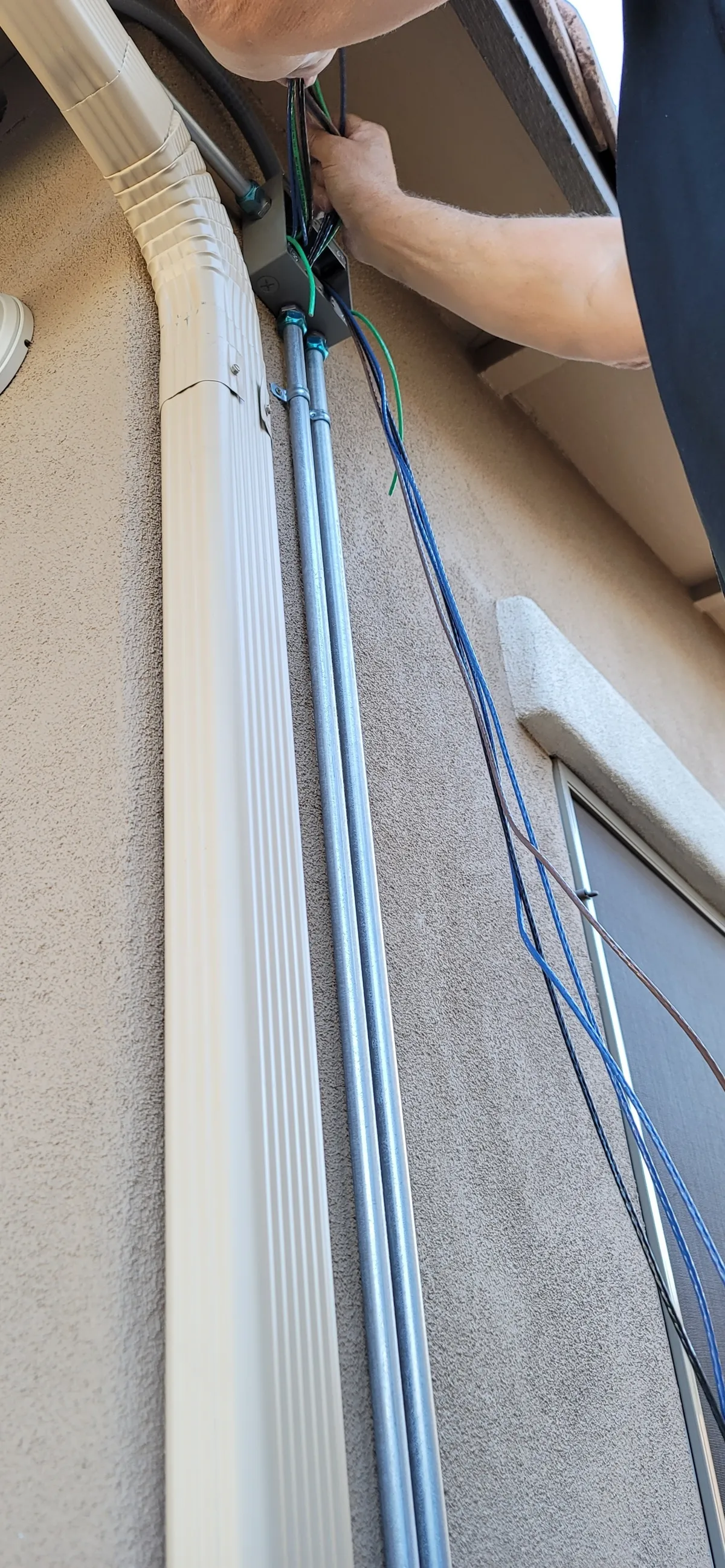

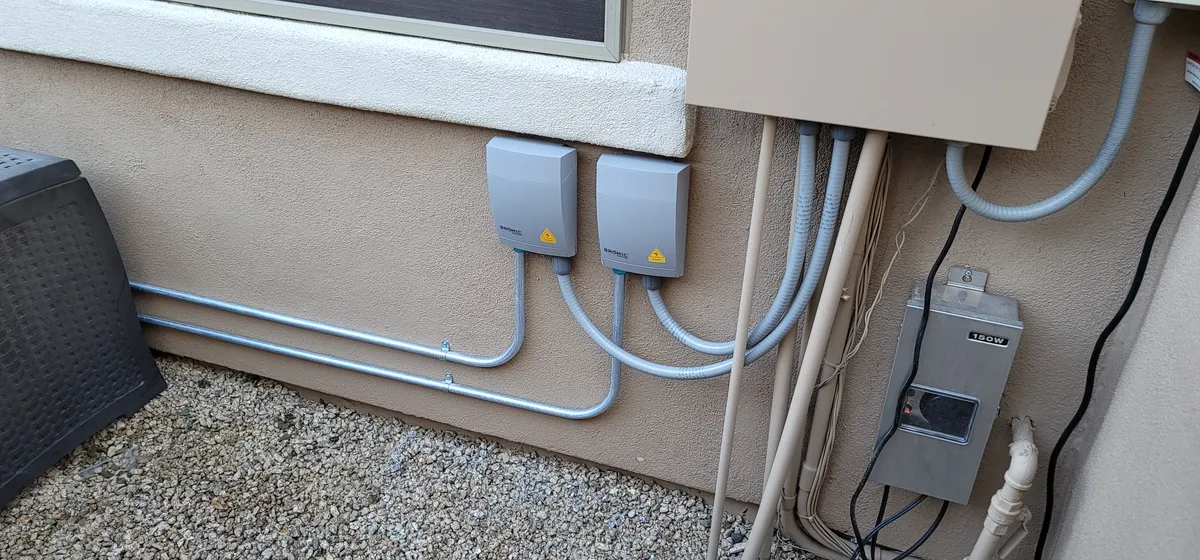

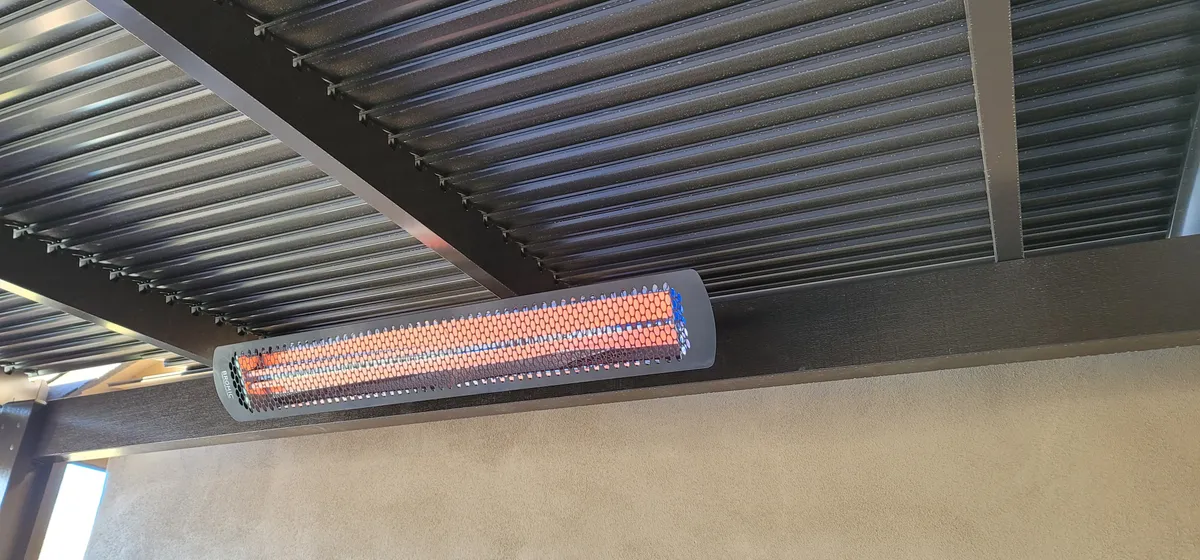

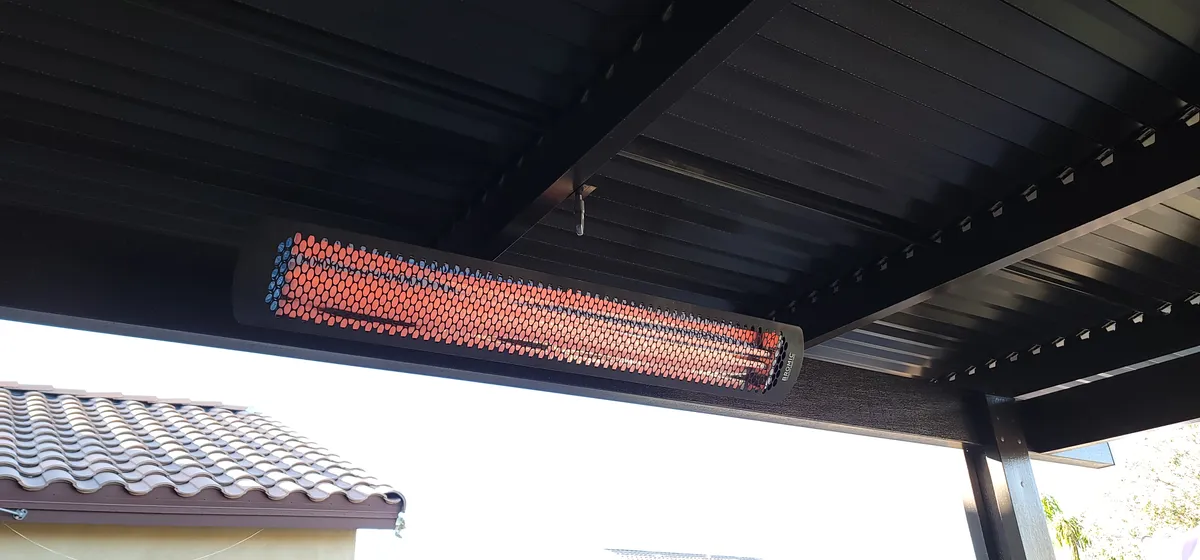

Our Infrared Heater Installation Projects
What Are Infrared Heaters?
Electric infrared heaters produce radiant heat — the same type of warmth from the sun. Unlike forced-air heaters that heat surrounding air (which dissipates outdoors), infrared heaters heat objects and people directly. Hardwired units mount to ceiling joists, pergola beams, or wall brackets and connect to a dedicated 240V circuit. Popular brands include Dr. Infrared, Bromic, and Heatscope.
Infrared Heater Installation Options
Ceiling-Mounted Patio Heaters
The most common installation for covered patios and pergolas. We mount units to ceiling joists, run 240V wiring, and connect to a dedicated breaker with wall switch. Most patios need 2–4 heaters for 200–400 sq ft at 10-foot ceiling height.
Wall-Mounted Heaters
For patios without overhead mounting points. These project heat at an angle across the space and work well on stucco walls along patio perimeters.
Smart Controls & Thermostat Integration
We can connect heaters to a smart switch or outdoor thermostat for automatic on/off by temperature or schedule.
| Heater Type | Coverage Area | Power | Best For |
|---|---|---|---|
| Compact wall-mount (1,500W) | 50–80 sq ft | 120V / 12.5A | Small seating areas, bistro tables |
| Standard ceiling-mount (3,000W) | 100–150 sq ft | 240V / 12.5A | Covered patios, pergolas |
| High-output ceiling-mount (4,000W) | 150–200 sq ft | 240V / 16.7A | Large patios, outdoor kitchens |
| Dual-element (6,000W) | 200–300 sq ft | 240V / 25A | Open entertainment areas, commercial patios |
How Much Does Patio Heater Installation Cost?
Single heater installation typically runs $400–$700 installed. Multi-heater setups (2–4 units) typically run $700–$1,500. Units themselves range $150–$600.
How Infrared Heater Installation Works
- Heater Sizing & Placement — We calculate coverage for your patio dimensions and ceiling height, and determine optimal mounting locations.
- Wiring & Mounting — We run a dedicated 240V circuit from your panel to the patio, mount heaters, and make all electrical connections.
- Switch & Controls — We install the wall switch or smart control, test full function, and confirm heat output.
Extend Your Outdoor Season
Get a free infrared heater installation estimate.
